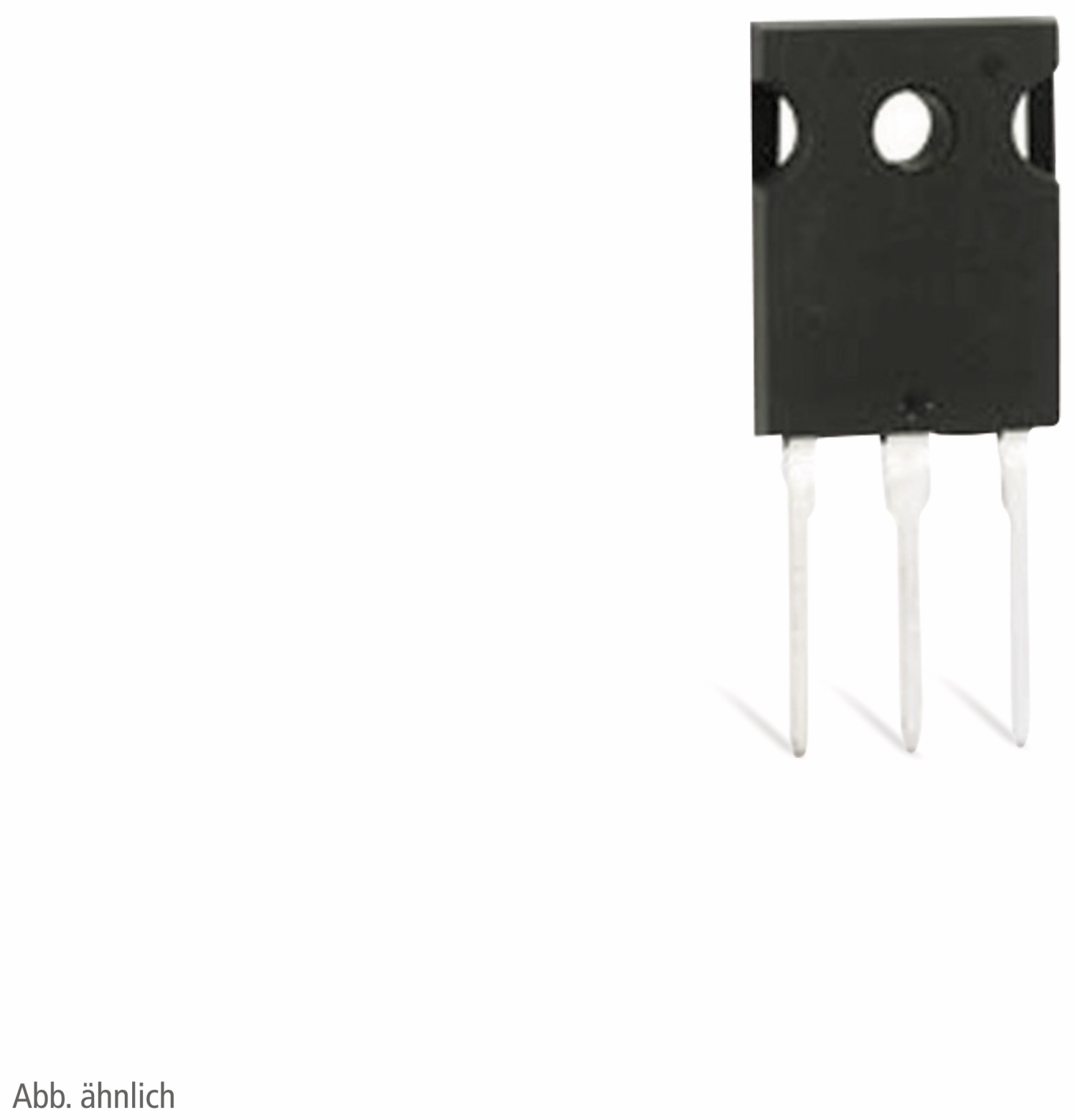

Produktinformationen "INTERNATIONAL RECTIFIER IGBT IRG4PH30KPBF"
Uces 1200 V, Ics25 20 A, Icpuls 40 A, Ptot 100 W, Ugeth 3 V, tdon 28 ns, tdoff 200 ns, TO-247.
Technische Daten:
- Typ: IGBT
- Bauform: TO-247AC
- max. Collector-Emitter Breakdown Voltage (Uces): 1200 V
- max. Continuous Collector Current at 25°(Ic25): 20 A
- max. Pulsed Collector Current (Icpuls): 40 A
- Power Dissipation (Ptot): 100 W
- min. Gate Thereshold Voltage (Uge th): 3 V
- Turn On Delay Time (td on): 28 ns
- Turn Off Delay Time (td off): 200 ns
- Hersteller: INTERNATIONAL RECTIFIER
- Herstellerartikelnummer: IRG4PH30KPBF
- Datenblatt: http://www.infineon.com/
